Nextgen Ethernet: 40Gb and 100Gb

100 Gigabit Ethernet (or 100GbE) and 40 Gigabit Ethernet (or 40GbE) are high-speed computer network standards for Ethernet. They support sending Ethernet frames at 40 and 100 gigabits per second over multiple 10 Gbit/s or 25 Gbit/s lanes. Previously, the fastest published Ethernet standard was 10 Gigabit Ethernet.

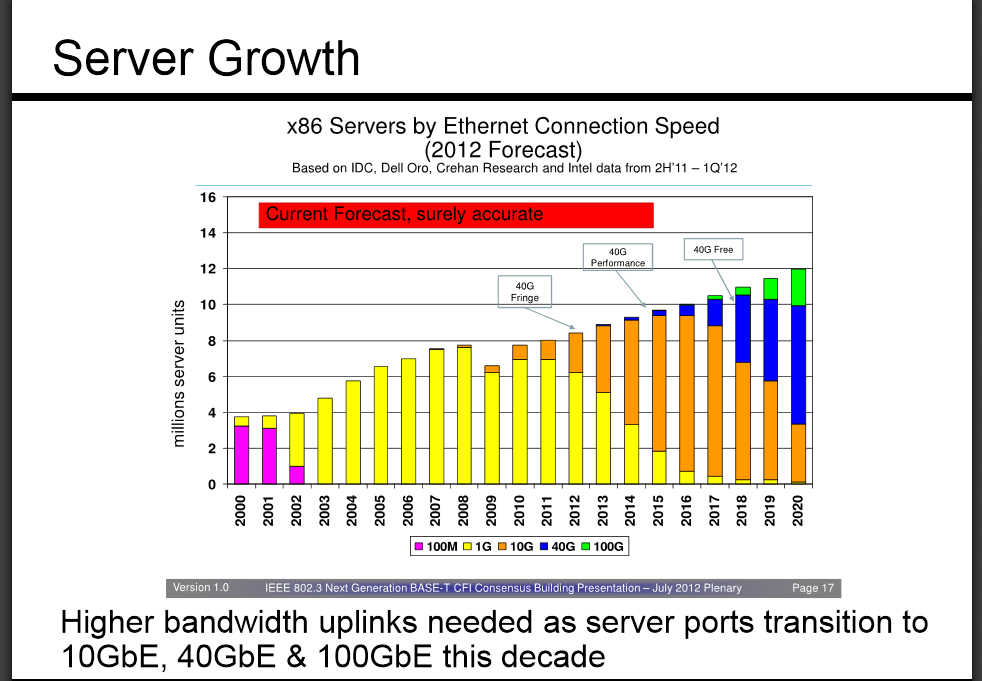

Demand for higher bandwidth is ever-growing with virtualisation and cloud computing being leaders of demand spurt, with big data and the convergence of storage and data networks also contributing. Together they are putting increasing pressure on data centre networks, so much so that IT leaders think demand for bandwidth is one of the most critical issues facing data centres today.

Large-scale data centers that move lots of packets across network backbones are seeing their links become steadily more congested, however, meaning higher speeds will soon become necessary if overall network traffic growth is to continue. What is amazing is the rate at which the demand for bandwidth is increasing. Today 40 percent have already deployed 10Gb Ethernet, and in another four years, the majority of those networks will be operating at 100GbE. It's truly unprecedented. Forget about RJ-45 cables. The only practical way to achieve such stratospheric bandwidth rates is through optical links – and therein lies the problem, because today's top-speed networks are already pushing the envelope of how fast we can push data through fiber optic cable.

Many companies offer the 40 Gbps Ethernet (40GbE) and 100 Gbps Ethernet (100GbE)  intellectual property (IP) cores for building systems with very high throughput-rate standard Ethernet connections. These IEEE 802.3baTM-2010 40 Gbps and 100 Gbps Ethernet standard compliant media access control (MAC) and PHY (PCS+PMA) IP cores enable these devices to interface to another device or to an optical transceiver module and, in turn, to 40GbE and 100GbE networks.

10 Gbps Module Evolution



100 Gbps Module Evolution

IEEE 802.3baTM-2010 defines the speeds of 40 and 100 Gbit/s to support both end-point and link aggregation needs. This is the first time two different Ethernet speeds have been specified in a single standard. The decision to include both speeds comes from pressure to support the 40 Gbit/s rate for local server applications and the 100 Gbit/s rate for internet backbones.

The 40/100 Gigabit Ethernet standards encompass a number of different Ethernet Physical layer (PHY) specifications. A networking device may support different PHY types by means of pluggable modules. Optical modules are not standardized by any official standards body but are in multi-source agreements (MSAs). One agreement that supports 40 and 100 Gigabit Ethernet is the C Form-Factor Pluggable (CFP) MSA which was adopted for distances of 100+ meters. QSFP and CXP connector modules support shorter distances.

The standard supports only full-duplex operation. Other electrical objectives include:

  • Preserve the 802.3 / Ethernet frame format utilizing the 802.3 MAC
  • Preserve minimum and maximum FrameSize of current 802.3 standard
  • Support a bit error ratio (BER) better than or equal to 10−12 at the MAC/PLS service interface
  • Provide appropriate support for OTN
  • Support MAC data rates of 40 and 100 Gbit/s
  • Provide Physical Layer specifications (PHY) for operation over single-mode optical fibre (SMF), laser optimized multi-mode optical fibre (MMF) OM3 and OM4, copper cable assembly, and backplane.

The following nomenclature was used for the physical layers:

Physical layer 40 Gigabit Ethernet 100 Gigabit Ethernet
Backplane 40GBASE-KR4
Copper cable 40GBASE-CR4 100GBASE-CR10
100 m over OM3 MMF 40GBASE-SR4 100GBASE-SR10
125 m over OM4 MMF
10 km over SMF 40GBASE-LR4 100GBASE-LR4
40 km over SMF   100GBASE-ER4
Serial SMF over 2 km 40GBASE-FR






http://www.fiberoptics4sale.com/Merchant2/graphics/00000001/d13b2c3edc8b_D185/image_8.png
